2SC5027 - Silicon NPN Transistor

Product Overview

📥 Download Datasheet

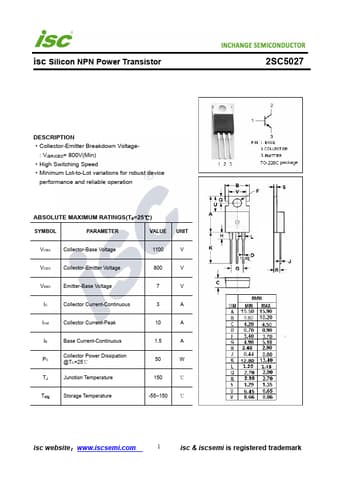

Datasheet preview – 2SC5027

Datasheet Details

Part number 2SC5027
Manufacturer Inchange Semiconductor
File Size 213.88 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SC5027 Datasheet
Additional preview pages of the 2SC5027 datasheet.

Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 800V(Min) High Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1100 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 3 A ICM Collector Current-Peak 10 A IB Base Current-Continuous PC Collector Power Dissipation @TC=
