2SC5084 Silicon NPN Transistor

📥 Download Datasheet  Datasheet Preview Page 1

Description

isc Silicon NPN RF Transistor INCHANGE Semiconductor 2SC5084 .
High Gain Bandwidth Product fT = 7 GHz TYP. High Gain, Low Noise Figure ︱S21e︱2 = 11 dB TYP. 100% avalanch.

📥 Download Datasheet

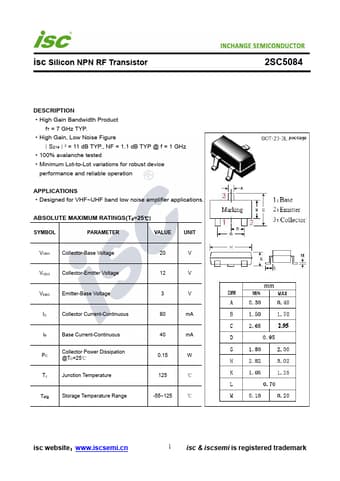

Preview of 2SC5084 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
2SC5084
Manufacturer
Inchange Semiconductor
File Size
186.57 KB
Datasheet
2SC5084-InchangeSemiconductor.pdf
Description
Silicon NPN Transistor

Applications

* Designed for VHF~UHF band low noise amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 20 V VCEO Collector-Emitter Voltage 12 V VEBO Emitter-Base Voltage 3 V IC Collector Current-Continuous 80 mA IB Base Current-
