2SC5047, Silicon NPN Transistor

isc Silicon NPN Power Transistor 2SC5047 .
High Switching Speed. High Breakdown Voltage- : V(BR)CBO= 1600V(Min). Minimum Lot-to-Lot variations for robust device performance and rel.

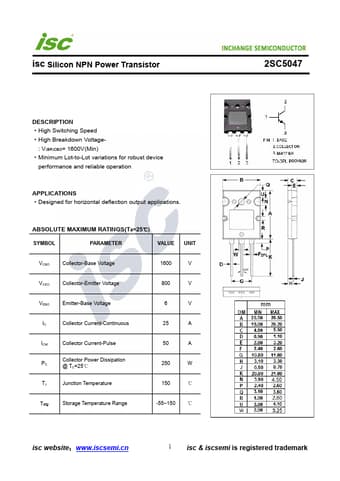

datasheet Preview Page 1 from Datasheet4u.com

2SC5047-InchangeSemiconductor.pdf

2SC5047 Datasheet Preview — Preview of 2SC5047 PDF

Datasheet Details

Part number:

2SC5047

Manufacturer:

Inchange Semiconductor

File Size:

213.49 KB

Description:

Silicon NPN Transistor

Applications

* Designed for horizontal deflection output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1600 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 25 A ICM Collector Cur
