2SK1701 - N-Channel MOSFET Transistor

2SK1701 Description

isc N-Channel MOSFET Transistor 2SK1701 .
Drain Current. ID= 8A@ TC=25℃. Drain Source Voltage- : VDSS= 450V(Min). Minimum Lot-to-Lot variations for robust device performan.

2SK1701 Applications

* High speed power switching.
* Low drive current.
* Suitable for motor control, switching regulator and DC
* DC converter. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 450 V VGS Gate-Source Voltage ±30 V ID Drain Current-

📥 Download Datasheet

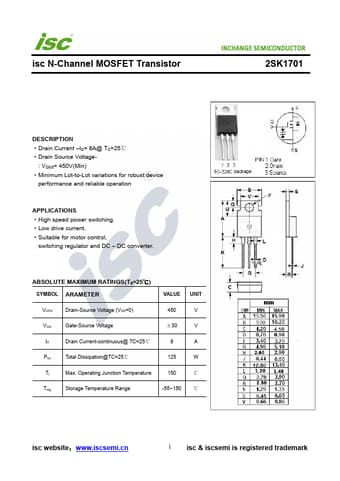

Preview of 2SK1701 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SK1701
Manufacturer
Inchange Semiconductor
File Size
212.75 KB
Datasheet
2SK1701-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
