2SK1704 N-Channel MOSFET Transistor

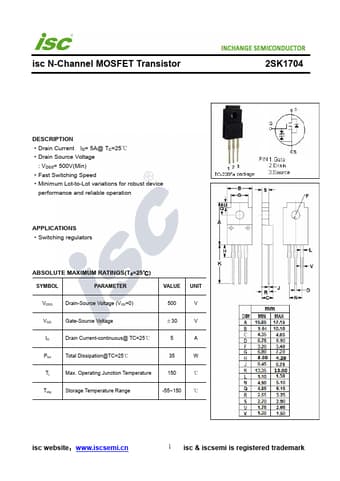

📥 Download Datasheet  Datasheet Preview Page 1

Description

isc N-Channel MOSFET Transistor 2SK1704 .
Drain Current ID= 5A@ TC=25℃. Drain Source Voltage : VDSS= 500V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations for robust.

📥 Download Datasheet

Preview of 2SK1704 PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
2SK1704
Manufacturer
Inchange Semiconductor
File Size
212.88 KB
Datasheet
2SK1704-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor

Applications

* Switching regulators ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 500 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 5 A Ptot Total Dissipation@TC=25℃ 35 W Tj Max. Operating Junction Temperature 150 ℃
