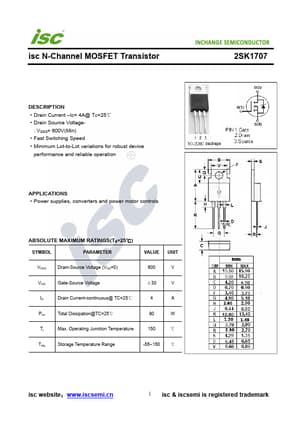

datasheet Preview Page 1 from Datasheet4u.com

2SK1707 N-Channel MOSFET Transistor

isc N-Channel MOSFET Transistor 2SK1707 .
Drain Current. ID= 4A@ TC=25℃. Drain Source Voltage- : VDSS= 600V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations f.

2SK1707-InchangeSemiconductor.pdf

2SK1707 Datasheet Preview — Preview of 2SK1707 PDF

Datasheet Details

Part number:

2SK1707

Manufacturer:

Inchange Semiconductor

File Size:

212.02 KB

Description:

N-Channel MOSFET Transistor

Applications

* Power supplies, converters and power motor controls ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 600 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 4 A Ptot Total Dissipation@TC=25℃ 90 W Tj Max. Operati
