2SK2022-01M - N-Channel MOSFET Transistor

Inchange Semiconductor

The 2SK2022-01M by Inchange Semiconductor is a N-Channel MOSFET Transistor. Below is the official datasheet preview.

📥 Download Datasheet

2SK2022-01M N-Channel MOSFET Transistor by Inchange Semiconductor - Datasheet Preview — Official preview page of the **2SK2022-01M** N-Channel MOSFET Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number	2SK2022-01M
Manufacturer	Inchange Semiconductor
File Size	212.75 KB
Description	N-Channel MOSFET Transistor
Datasheet	2SK2022-01M-InchangeSemiconductor.pdf

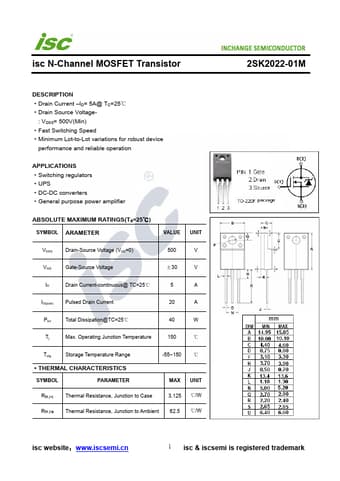

Additional preview pages of the 2SK2022-01M datasheet.

2SK2022-01M Product details

Description

Drain Current ID= 5A@ TC=25℃ Drain Source Voltage- : VDSS= 500V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Switching regulators UPS DC-DC converters General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 500 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 5 A ID(pu
