2SK2182 N-Channel MOSFET Transistor

2SK2182 Description

isc N-Channel MOSFET Transistor 2SK2182 .
Drain Current ID= 3A@ TC=25℃. Drain Source Voltage- : VDSS= 500V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations for robust.

2SK2182 Applications

* General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 500 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 3 A ID(puls) Pulse Drain Current 9 A Ptot Total Dissipation@TC=25℃ 25 W Tj

📥 Download Datasheet

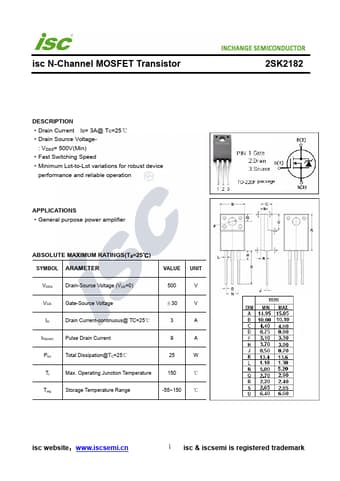

Preview of 2SK2182 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SK2182
Manufacturer
Inchange Semiconductor
File Size
211.46 KB
Datasheet
2SK2182-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
