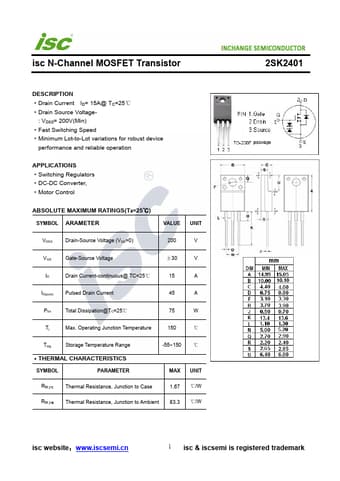

Part number: 2SK2401
Manufacturer: Inchange Semiconductor
File Size: 214.56KB
Download: 📄 Datasheet
Description: N-Channel MOSFET Transistor
*Switching Regulators
*DC-DC Converter,
*Motor Control
ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER
VA.
*Drain Current ID= 15A@ TC=25℃
*Drain Source Voltage-
: VDSS= 200V(Min)
*Fast Switching Speed
*Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
*Switching Regulators
*DC-DC Conve.
