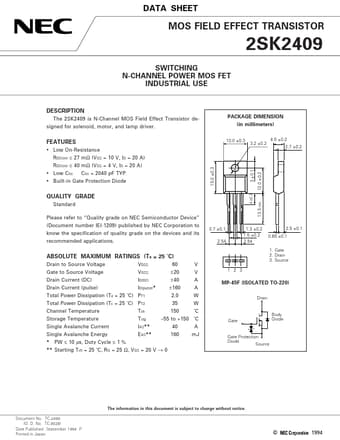

Part number: 2SK2409
Manufacturer: NEC
File Size: 114.51KB
Download: 📄 Datasheet
Description: SWITCHING N-CHANNEL POWER MOSFET
* Low On-Resistance
RDS(on) ≤ 27 mΩ (VGS = 10 V, ID = 20 A)
15.0 ±0.3
RDS(on) ≤ 40 mΩ (VGS = 4 V, ID = 20 A)
QUALITY GRADE
Standard Please refer to “Quality grade .
2.54 0.7 ±0.1
4 ±0.2
13.5 MIN.
12.0 ±0.2
* Low Ciss Ciss = 2040 pF TYP.
* Built-in Gate Protection Diode
3.
The 2SK2409 is N-Channel MOS Field Effect Transistor designed for solenoid, motor, and lamp driver. PACKAGE DIMENSION (in millimeters)
10.0 ±0.3 4.5 ±0.2 3.2 ±0.2 2.7 ±0.2
FEATURES
* Low On-Resistance
RDS(on) ≤ 27 mΩ (VGS = 10 V, ID = 20 A)
15..
