2SK2414-Z - SWITCHING N-CHANNEL POWER MOSFET

Datasheet Summary

Description

The 2SK2414 is N-Channel MOS Field Effect Transistor designed for high voltage switching applications.

Features

  • 1.6 ±0.2 5.0 ±0.2 4 1.5.
  • 0.1 +0.2 2.3 ±0.2 0.5 ±0.1 RDS(on)1 = 70 mΩ MAX. (@ VGS = 10 V, ID = 5.0 A) RDS(on)2 = 95 mΩ MAX. (@ VGS = 4 V, ID = 5.0 A) 1 2 3.
  • Low Ciss Ciss = 840 pF TYP.
  • Built-in G-S Gate Protection Diodes.
  • High Avalanche Capability Ratings.

📥 Download Datasheet

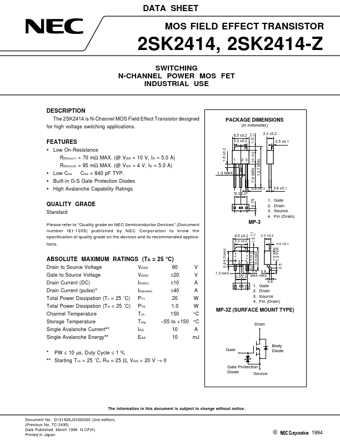

Datasheet preview – 2SK2414-Z

Datasheet Details

Part number 2SK2414-Z
Manufacturer NEC
File Size 58.83 KB
Description SWITCHING N-CHANNEL POWER MOSFET
Datasheet download datasheet 2SK2414-Z Datasheet
Additional preview pages of the 2SK2414-Z datasheet.

📁 Similar Datasheet

  • 2SK2414 - MOS Field Effect Transistor (Kexin)
  • 2SK241 - Silicon N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK2411 - SWITCHING N-CHANNEL POWER MOSFET (NEC Electronics)
  • 2SK2411-Z - SWITCHING N-CHANNEL POWER MOSFET (NEC Electronics)
  • 2SK2415-Z-E1-AZ - N-Channel MOSFET (VBsemi)
  • 2SK2417 - N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK2417 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK2419 - MOSFET (Sanken electric)
  • 2SK240 - Silicon N-Channel Transistor (Toshiba)
  • 2SK2400 - Silicon N-Channel MOSFET (Toshiba Semiconductor)
Other Datasheets by NEC
  • 2SK2414 - SWITCHING N-CHANNEL POWER MOSFET
  • 2SK2410 - SWITCHING N-CHANNEL POWER MOSFET
  • 2SK2412 - SWITCHING N-CHANNEL POWER MOSFET
  • 2SK2413 - SWITCHING N-CHANNEL POWER MOSFET
  • 2SK2415 - SWITCHING N-CHANNEL POWER MOSFET
  • 2SK2415-Z - SWITCHING N-CHANNEL POWER MOSFET
  • 2SK2409 - SWITCHING N-CHANNEL POWER MOSFET
  • 2SK2461 - N-Channel MOSFET

Full PDF Text Transcription

Click to expand full text
DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK2414, 2SK2414-Z SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE DESCRIPTION The 2SK2414 is N-Channel MOS Field Effect Transistor designed for high voltage switching applications. PACKAGE DIMENSIONS (in millimeter) 6.5 ±0.2 FEATURES 1.6 ±0.2 5.0 ±0.2 4 1.5 –0.1 +0.2 2.3 ±0.2 0.5 ±0.1 RDS(on)1 = 70 mΩ MAX. (@ VGS = 10 V, ID = 5.0 A) RDS(on)2 = 95 mΩ MAX. (@ VGS = 4 V, ID = 5.0 A) 1 2 3 • Low Ciss Ciss = 840 pF TYP. • Built-in G-S Gate Protection Diodes • High Avalanche Capability Ratings QUALITY GRADE Standard Please refer to "Quality grade on NEC Semiconductor Devices" (Document number IEI-1209) published by NEC Corporation to know the specification of quality grade on the devices and its recommended applications. 1.3 MAX. 7.0 MIN. 5.
