2SK2410 - SWITCHING N-CHANNEL POWER MOSFET

Datasheet Summary

Description

The 2SK2410 is N-Channel MOS Field Effect Transistor designed for high speed switching applications.

Features

  • Low On-Resistance RDS(on)1 = 40 mΩ MAX. (@ VGS = 10 V, ID = 15 A) 15.0 ±0.3 3 ±0.1 4 ±0.2 12.0 ±0.2 13.5 MIN. RDS(on)2 = 60 mΩ MAX. (@ VGS = 4 V, ID = 15 A).
  • Low Ciss Ciss = 1500 pF TYP.
  • High Avalanche Capability Ratings.
  • Built-in G-S Gate Protection Diodes.

📥 Download Datasheet

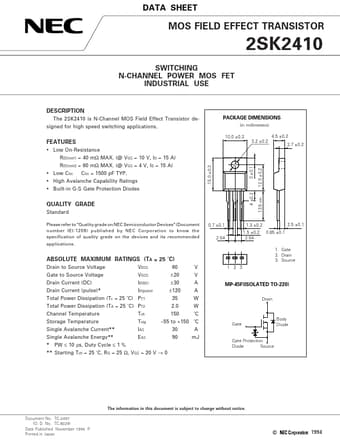

Datasheet preview – 2SK2410

Datasheet Details

Part number 2SK2410
Manufacturer NEC
File Size 113.75 KB
Description SWITCHING N-CHANNEL POWER MOSFET
Datasheet download datasheet 2SK2410 Datasheet
