2SK3479

N-Channel MOSFET Transistor

2SK3479 Features

* Drain Current : ID= 83A@ TC=25℃

* Drain Source Voltage : VDSS= 100V(Min)

* Static Drain-Source On-Resistance : RDS(on) = 11mΩ(Max) @ VGS= 10V

* 100% avalanche tested

* Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION

* motor drive, D

2SK3479 General Description


*motor drive, DC-DC converter, power switch and solenoid drive. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 100 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 83 A IDM Drain Current-Single Pluse 332 A PD To.

2SK3479 Datasheet (289.07 KB)

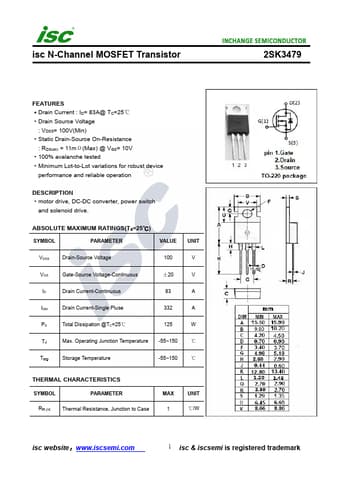

Preview of 2SK3479 PDF

Datasheet Details

Part number:

2SK3479

Manufacturer:

Inchange Semiconductor

File Size:

289.07 KB

Description:

N-channel mosfet transistor.
