2SK3473 - N-Channel MOSFET

2SK3473 Description

www.DataSheet4U.com 2SK3473 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π-MOSIV) 2SK3473 Switching Regulator Applications Unit: mm .

2SK3473 Applications

* Unit: mm
* Low drain-source ON resistance: RDS (ON) = 1.3Ω (typ. ) High forward transfer admittance: |Yfs| = 6.5S (typ. ) Low leakage current: IDSS = 100 μA (VDS = 720 V) Enhancement-mode: Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA) Maximum Ratings (Ta = 25°C) Char

📥 Download Datasheet

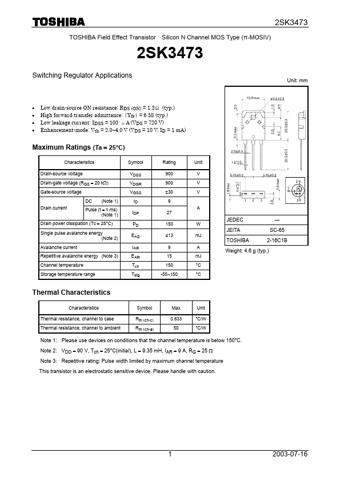

Preview of 2SK3473 PDF
datasheet Preview Page 2 datasheet Preview Page 3
