2SK350 Datasheet - Inchange Semiconductor

2SK350, N-Channel MOSFET Transistor

isc N-Channel MOSFET Transistor 2SK350 .
Drain Current. ID=10A@ TC=25℃. Drain Source Voltage- : VDSS= 450V(Min). Fast Switching Speed. 100% avalanche tested. Mini.

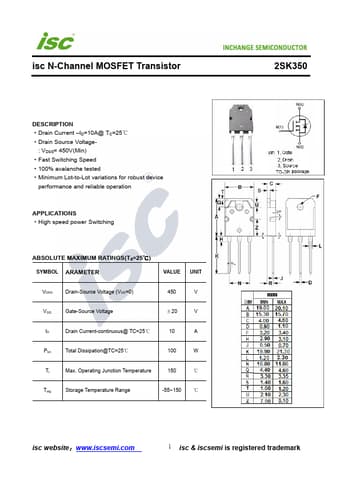

datasheet Preview Page 1 from Datasheet4u.com

2SK350-InchangeSemiconductor.pdf

2SK350 Datasheet Preview — Preview of 2SK350 PDF

Datasheet Details

Part number:

2SK350

Manufacturer:

Inchange Semiconductor

File Size:

234.65 KB

Description:

N-Channel MOSFET Transistor

Applications

* High speed power Switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 450 V VGS Gate-Source Voltage ±20 V ID Drain Current-continuous@ TC=25℃ 10 A Ptot Total Dissipation@TC=25℃ 100 W Tj Max. Operating Junction Temperature 1
