2SK3604S Datasheet - Inchange Semiconductor

2SK3604S N-Channel MOSFET Transistor

*motor drive, DC-DC converter, power switch and solenoid drive. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 150 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 23 A IDM Drain Current-Single Pluse 92 A PD Tot.

2SK3604S-InchangeSemiconductor.pdf

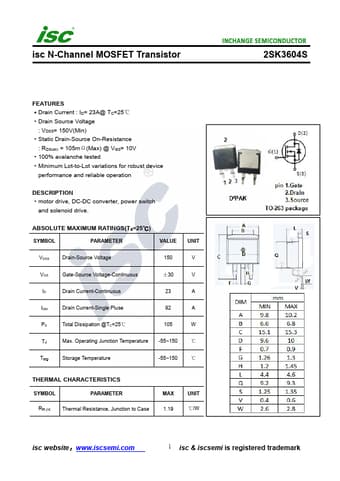

Preview of 2SK3604S PDF
2SK3604S Datasheet Preview Page 2

Datasheet Details

Part number:

2SK3604S

Manufacturer:

Inchange Semiconductor

File Size:

357.33 KB

Description:

N-channel mosfet transistor.
