2SK3746 Datasheet - Inchange Semiconductor

2SK3746 N-Channel MOSFET Transistor

*motor drive, DC-DC converter, power switch and solenoid drive. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 1500 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 2.0 A IDM Drain Current-Single Pluse 4.0 A PD .

2SK3746-InchangeSemiconductor.pdf

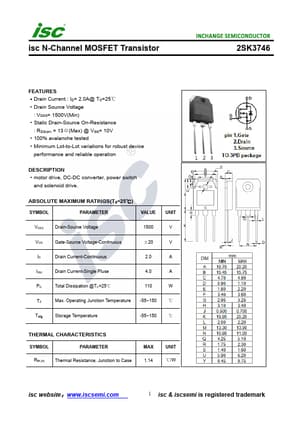

Preview of 2SK3746 PDF
2SK3746 Datasheet Preview Page 2

Datasheet Details

Part number:

2SK3746

Manufacturer:

Inchange Semiconductor

File Size:

302.57 KB

Description:

N-channel mosfet transistor.
