2SK3743 Datasheet - Toshiba Semiconductor

2SK3743 N-Channel MOSFET

2SK3743 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π-MOSV) www.DataSheet4U.com 2SK3743 Unit: mm Switching Regulator Applications Low drain-source ON resistance: RDS (ON) = 0.29 Ω (typ.) High forward transfer admittance: |Yfs| = 5.8 S (typ.) Low leakage current: IDSS = 100 μA (max) (VDSS = 450 V) Enhancement-mode: Vth = 3.0~5.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Characteristics Drain-source voltage Drain-gate .

2SK3743_ToshibaSemiconductor.pdf

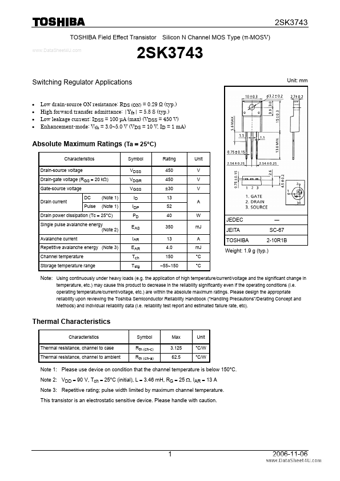

Preview of 2SK3743 PDF
2SK3743 Datasheet Preview Page 2 2SK3743 Datasheet Preview Page 3

Datasheet Details

Part number:

2SK3743

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

329.50 KB

Description:

N-channel mosfet.
