2SK764 - N-Channel MOSFET Transistor

📥 Download Datasheet

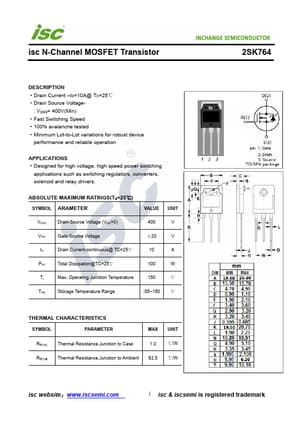

Preview of 2SK764 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SK764
Manufacturer Inchange Semiconductor
File Size 237.51 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK764-InchangeSemiconductor.pdf

2SK764 Product details

Description

Drain Current ID=10A@ TC=25℃ Drain Source Voltage- : VDSS= 400V(Min) Fast Switching Speed 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for high voltage, high speed power switching applications such as switching regulators, converters, solenoid and relay drivers.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 400 V VGS Gat
