2SK765 - N-Channel MOSFET Transistor

📥 Download Datasheet

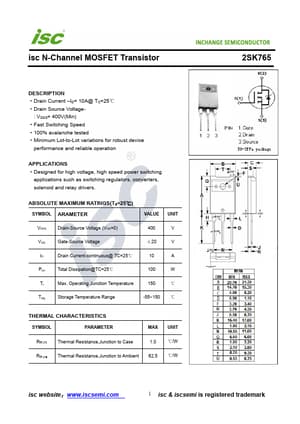

Preview of 2SK765 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SK765
Manufacturer Inchange Semiconductor
File Size 235.22 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK765-InchangeSemiconductor.pdf

2SK765 Product details

Description

Drain Current ID= 10A@ TC=25℃ Drain Source Voltage- : VDSS= 400V(Min) Fast Switching Speed 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for high voltage, high speed power switching applications such as switching regulators, converters, solenoid and relay drivers.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 400 V VGS Ga
