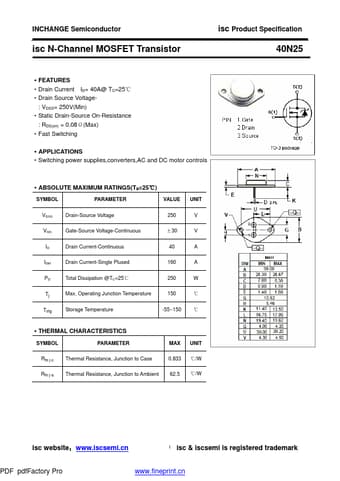

40N25 Datasheet, Transistor, Inchange Semiconductor

40N25 Features

• Transistor
• Drain Current ID= 40A@ TC=25℃
• Drain Source Voltage- : VDSS= 250V(Min)
• Static Drain-Source On-Resistance : RDS(on) = 0.08Ω(Max)
• Fast Switching

PDF File Details

Part number:

40N25

Manufacturer:

Inchange Semiconductor

File Size:

44.14kb

Download:

📄 Datasheet

Description:

N-channel mosfet transistor.

40N25 Application

• Applications
• Switching power supplies,converters,AC and DC motor controls
• ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VA
