IRF240 - N-Channel MOSFET Transistor

📥 Download Datasheet

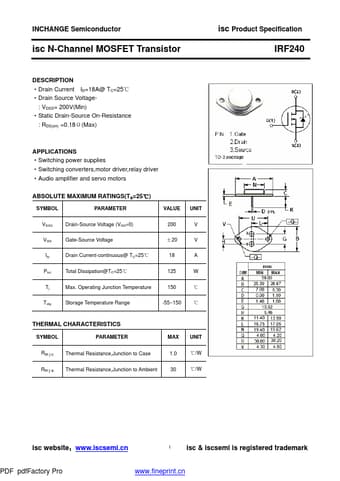

Preview of IRF240 PDF
datasheet Preview Page 2

Datasheet Details

Part number IRF240
Manufacturer Inchange Semiconductor
File Size 42.44 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet IRF240-InchangeSemiconductor.pdf

IRF240 Product details

Description

Drain Current ID=18A@ TC=25℃ Drain Source Voltage- : VDSS= 200V(Min) Static Drain-Source On-Resistance : RDS(on) =0.18Ω(Max) APPLICATIONS Switching power supplies Switching converters,motor driver,relay driver Audio amplifier and servo motors ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS ID Ptot Tj Tstg Drain-Source Voltage (VGS=0) 200 V Gate-Source Voltage ±20 V Drain Current-continuous@ TC=25℃ 18 A Total Dissipation@TC=25℃ 125
