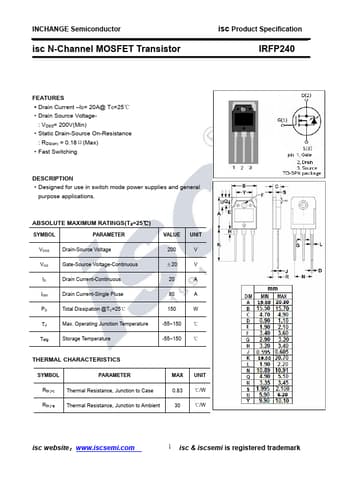

IRFP240 Datasheet, Transistor, Inchange Semiconductor

IRFP240 Features

• Transistor
• Drain Current
    –ID= 20A@ TC=25℃
• Drain Source Voltage- : VDSS= 200V(Min)
• Static Drain-Source On-Resistance : RDS(on) = 0.18Ω(Max)
• Fast

PDF File Details

Part number:

IRFP240

Manufacturer:

Inchange Semiconductor

File Size:

162.96kb

Download:

📄 Datasheet

Description:

N-channel mosfet transistor.

Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL

IRFP240 Application

• Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current
