IRFP240R

N-Channel MOSFET Transistor

IRFP240R Features

* Drain Current

* ID= 20A@ TC=25℃

* Drain Source Voltage- : VDSS= 200V(Min)

* Static Drain-Source On-Resistance : RDS(on) = 0.18Ω(Max)

* Fast Switching DESCRIPTION

* Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=2

IRFP240R General Description


*Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 200 ±20 V V ID Drain Current-Continuous 20 A IDM Drain Current-Single Pluse 80 A.

IRFP240R Datasheet (62.00 KB)

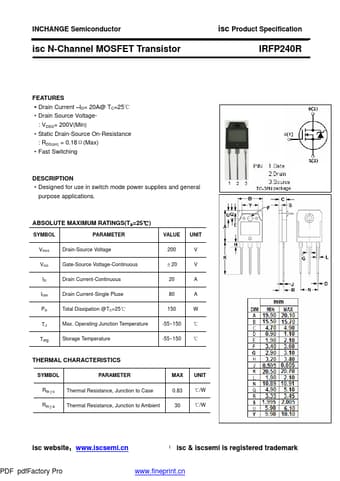

Preview of IRFP240R PDF

Datasheet Details

Part number:

IRFP240R

Manufacturer:

Inchange Semiconductor

File Size:

62.00 KB

Description:

N-channel mosfet transistor.
