IRFP240PbF, IRFP240 Power MOSFET

IRFP240PbF Description

Power MOSFET IRFP240, SiHFP240 Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) () Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 200 VGS = 10 V .
Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistan.

IRFP240PbF Features

* Dynamic dV/dt Rating
* Repetitive Avalanche Rated
* Isolated Central Mounting Hole
* Fast Switching
* Ease of Paralleling
* Simple Drive Requirements
* Compliant to RoHS Directive 2002/95/EC Available RoHS

IRFP240PbF Applications

* where higher power levels preclude the use of TO-220AB devices. The TO-247AC is similar but superior to the earlier TO-218 package because its isolated mounting hole. It also provides greater creepage distances between pins to meet the requirements of most safety specifications. ORDERING INFORMATIO

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRFP240PbF, IRFP240. Please refer to the document for exact specifications by model.

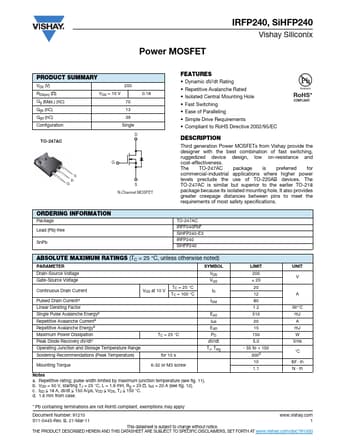

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRFP240PbF, IRFP240
Manufacturer
Vishay ↗ Siliconix
File Size
1.13 MB
Datasheet
IRFP240_VishaySiliconix.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRFP240PbF, IRFP240.
Please refer to the document for exact specifications by model.
