IRFP240A N-Channel MOSFET Transistor

IRFP240A Description

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification IRFP240A .
Designed for use in switch mode power supplies and general purpose applications.

IRFP240A Features

* Drain Current
* ID= 20A@ TC=25℃
* Drain Source Voltage- : VDSS= 200V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 0.18Ω(Max)

IRFP240A Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 200 ±20 V V ID Drain Current-Continuous 20 A IDM Drain Current-Single Pluse 80 A PD Total Dissipation @TC=25℃ 180 W TJ Max. Operating Junction Temperature -55~1

📥 Download Datasheet

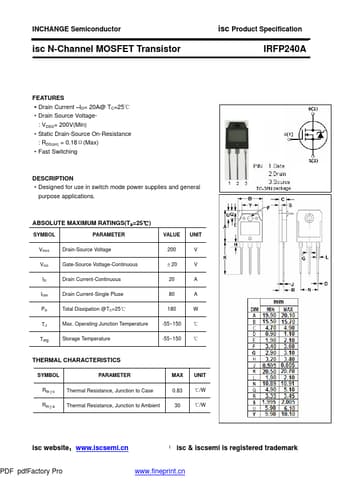

Preview of IRFP240A PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRFP240A
Manufacturer
Inchange Semiconductor
File Size
62.00 KB
Datasheet
IRFP240A-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
