MD1803DFX - Silicon NPN Power Transistor

Product Overview

Inchange Semiconductor

Datasheet Details

Part number	MD1803DFX
Manufacturer	Inchange Semiconductor
File Size	218.71 KB
Description	Silicon NPN Power Transistor
Datasheet	MD1803DFX Datasheet
Additional preview pages of the MD1803DFX datasheet.

Product details

Description

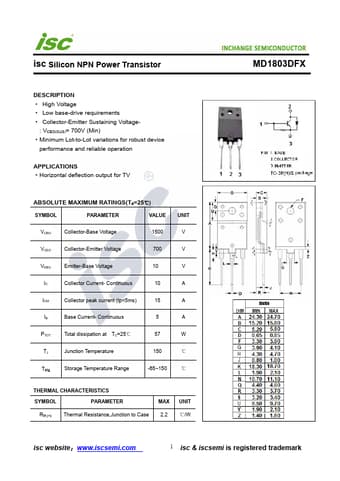

High Voltage Low base-drive requirements Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 700V (Min) Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Horizontal deflection output for TV ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 700 V VEBO Emitter-Base Voltage 10 V IC Collector Current- Continuous 10 A ICM Collecto
