BAR64-05 Datasheet - Infineon Technologies AG

BAR64-05 Silicon PIN Diode

Silicon PIN Diode High voltage current controlled RF resistor for RF attenuator and switches Frequency range above 1 MHz up to 6 GHz Very low capacitance at zero volt reverse bias at frequencies above 1 GHz (typ. 0.17 pF) Low forward resistance (typ. 2.1 Ω @ 10 mA) Very low signal distortion Pb-free (RoHS compliant) package Qualified according AEC Q1011) BAR64 BAR64-02EL BAR64-02V BAR64-03W BAR64-04 BAR64-04W ! , , BA.

BAR64-05 Datasheet (1.02 MB)

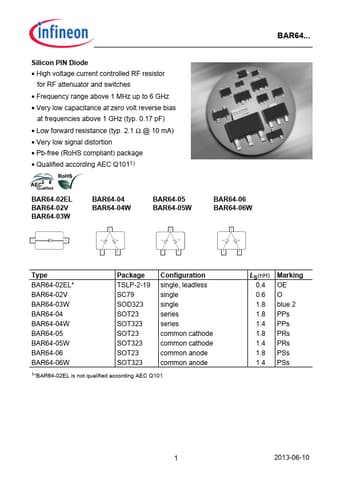

BAR64-05 Datasheet Preview — Preview of BAR64-05 PDF

Datasheet Details

Part number:

BAR64-05

Manufacturer:

Infineon ↗ Technologies AG

File Size:

1.02 MB

Description:

Silicon pin diode.
