BAT15-05W - Silicon Schottky Diode

📥 Download Datasheet

Datasheet preview – BAT15-05W

Datasheet Details

Part number BAT15-05W
Manufacturer Infineon Technologies AG
File Size 1.11 MB
Description Silicon Schottky Diode
Datasheet download datasheet BAT15-05W Datasheet
Additional preview pages of the BAT15-05W datasheet.

📁 Similar Datasheet

  • BAT15-050D - Silicon Schottky Diode (Siemens Semiconductor Group)
  • BAT15-050R - Silicon Schottky Diode (Siemens Semiconductor Group)
  • BAT15-050S - Silicon Schottky Diode (Siemens Semiconductor Group)
  • BAT15-013 - HiRel Silicon Schottky Diode (Siemens Semiconductor Group)
  • BAT15-014 - Silicon Schottky Diode (Siemens Semiconductor Group)
  • BAT15-014 - Silicon Schottky Diode (Siemens Semiconductor Group)
  • BAT15-020D - Silicon Schottky Diode (Siemens Semiconductor Group)
  • BAT15-020R - Silicon Schottky Diode (Siemens Semiconductor Group)
  • BAT15-020S - Silicon Schottky Diode (Siemens Semiconductor Group)
  • BAT15-02EL - Silicon Schottky Diodes (Infineon)
Other Datasheets by Infineon Technologies AG

Full PDF Text Transcription

Click to expand full text

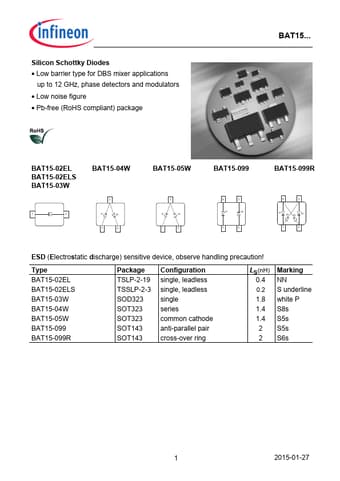

Silicon Schottky Diodes • Low barrier type for DBS mixer applications up to 12 GHz, phase detectors and modulators • Low noise figure • Pb-free (RoHS compliant) package BAT15... BAT15-02EL BAT15-02ELS BAT15-03W  BAT15-04W ! , ,  BAT15-05W ! , ,  BAT15-099 "! , ,  BAT15-099R "! , ,! ," ,  ESD (Electrostatic discharge) sensitive device, observe handling precaution! Type BAT15-02EL BAT15-02ELS BAT15-03W BAT15-04W BAT15-05W BAT15-099 BAT15-099R Package TSLP-2-19 TSSLP-2-3 SOD323 SOT323 SOT323 SOT143 SOT143 Configuration single, leadless single, leadless single series common cathode anti-parallel pair cross-over ring LS(nH) 0.4 0.2 1.8 1.4 1.4 2 2 Marking NN S underline white P S8s S5s S5s S6s 1 2015-01-27 BAT15...
