BAT15-020D Datasheet - Siemens Semiconductor Group

BAT15-020D Silicon Schottky Diode

Silicon Schottky Diodes q q q q BAT 15- … D Beam lead technology Low dimension High performance Low barrier ESD: Electrostatic discharge sensitive device, observe handling precautions! Type BAT 15-020 D BAT 15-050 D BAT 15-090 D BAT 15-110 D Maximum Ratings Parameter Symbol Values BAT 15-020 D BAT 15-050 D Reverse voltage Forward current Junction temperature Storage temperature range Operating temperature range VR IF Tj Tstg Top 4 100 175 65 … + 150 65 … + 150 BAT 15-090 D.

BAT15-020D_SiemensSemiconductorGroup.pdf

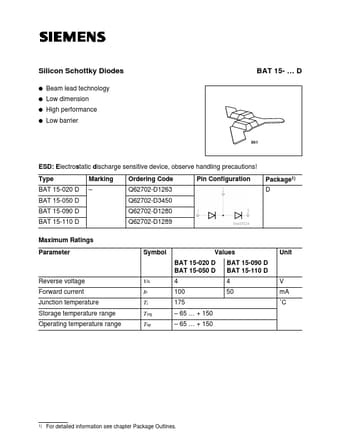

Preview of BAT15-020D PDF
BAT15-020D Datasheet Preview Page 2

Datasheet Details

Part number:

BAT15-020D

Manufacturer:

Siemens Semiconductor Group

File Size:

16.34 KB

Description:

Silicon schottky diode.
