BAT15-014 Silicon Schottky Diode

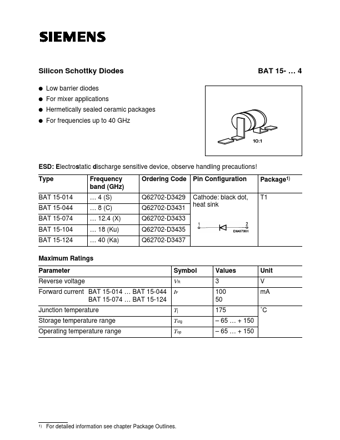

Silicon Schottky Diodes q q q q BAT 15- … 4 Low barrier diodes For mixer applications Hermetically sealed ceramic packages For frequencies up to 40 GHz ESD: Electrostatic discharge sensitive device, observe handling precautions! Type BAT 15-014 BAT 15-044 BAT 15-074 BAT 15-104 BAT 15-124 Frequency band (GHz) … 4 (S) … 8 (C) … 12.4 (X) … 18 (Ku) … 40 (Ka) Ordering Code Q62702-D3429 Q62702-D3431 Q62702-D3433 Q62702-D3435 Q62702-D3437 Pin Configuration Cathode: black dot, heat sink Package1) T1 .
