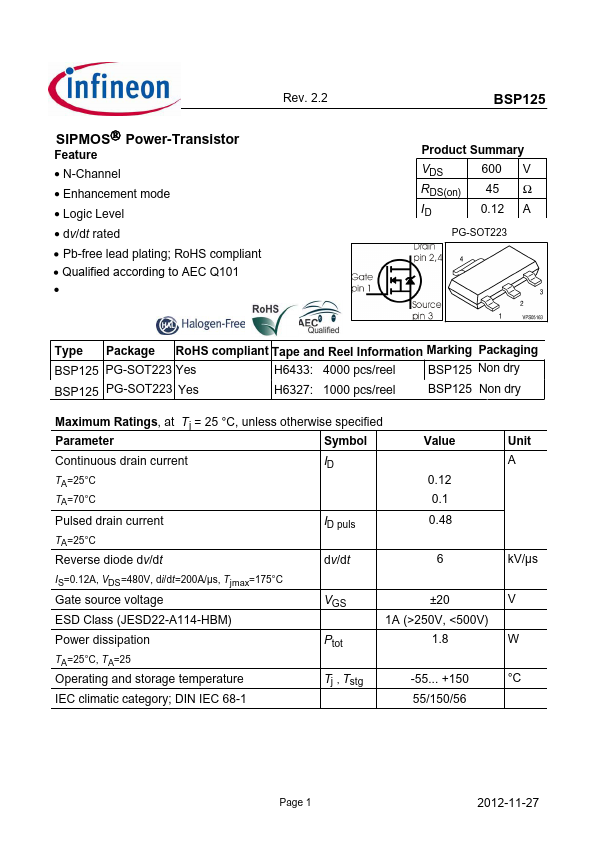

Rev. 2.2
SIPMOS Power-Transistor
Feature • N-Channel • Enhancement mode • Logic Level • dv/dt rated
• Pb-free lead plating; RoHS compliant
x Qualified according to AEC Q101 • Halogenfree according to IEC61249221
BSP125
Product Summary
VDS
600 V
RDS(on) 45 Ω
ID
0.12 A
PG-SOT223
Type Package RoHS compliant Tape and Reel Information Marking Packaging
BSP125 PG-SOT223 Yes
H6433: 4000 pcs/reel
BSP125 Non dry
BSP125 PG-SOT223 Yes
H6327: 1000 pcs/reel
BSP125 Non dry
Maximum Ratings, at Tj = 25 °C, unless otherwise specified
Parameter
Symbol
Value
Continuous drain current
TA=25°C TA=70°C
ID 0.12 0.1
Pulsed drain current
TA=25°C
Reverse diode dv/dt
ID puls dv/dt
0.48 6
IS=0.
