PTF080601F LDMOS RF Power Field Effect Transistor 60 W/ 860-960 MHz

The PTF080601 is a 60 *W, internally matched GOLDMOS FET intended for EDGE and CDMA applications in the 860 to 960 MHz band. Full gold metallization ensures excellent device lifetime and reliability. Typical EDGE Modulation Spectrum Performance Mod Spectrum vs. Output Power VDD = 28 V, IDQ = .

PTF080601F Features

* Broadband internal matching Typical EDGE performance - Average output power = 30 W - Gain = 18 dB - Efficiency = 40% Typical CW performance - Output power at P

* 1dB = 90 W - Gain = 17 dB - Efficiency = 60% Integrated ESD protection: Human Body Model, Class 1 (minimum) Exce

PTF080601F_InfineonTechnologiesAG.pdf

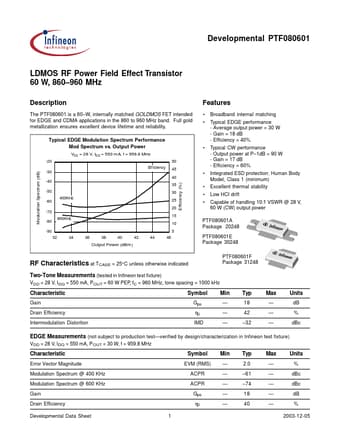

PTF080601F Datasheet Preview — Preview of PTF080601F PDF

Datasheet Details

Part number:

PTF080601F

Manufacturer:

Infineon ↗ Technologies AG

File Size:

293.74 KB

Description:

Ldmos rf power field effect transistor 60 w/ 860-960 mhz.
