P10N60 Datasheet - Infineon Technologies Corporation

P10N60 SGP10N60

SGP10N60 www.DataSheet4U.com SGB10N60, SGW10N60 Fast S-IGBT in NPT-technology C 75% lower Eoff compared to previous generation combined with low conduction losses Short circuit withstand time 10 µs Designed for: - Motor controls - Inverter NPT-Technology for 600V applications offers: - very tight parameter distribution - high ruggedness, temperature stable behaviour - parallel switching capability G E Type SGP10N60 SGB10N60 SGW10N60 Maximum .

P10N60_InfineonTechnologiesCorporation.pdf

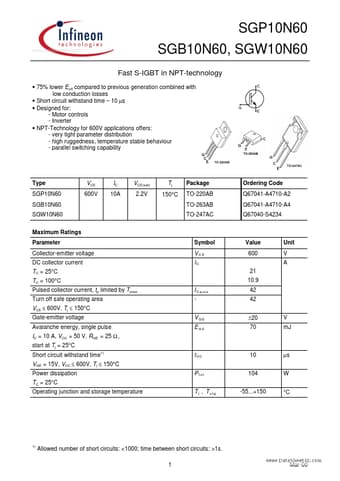

Preview of P10N60 PDF
P10N60 Datasheet Preview Page 2 P10N60 Datasheet Preview Page 3

Datasheet Details

Part number:

P10N60

Manufacturer:

Infineon ↗ Technologies Corporation

File Size:

299.58 KB

Description:

Sgp10n60.
