P10NK60Z

N-CHANNEL Power MOSFET

ST Microelectronics

P10NK60Z Features

* Type STB10NK60Z-1 STB10NK60ZT4 STP10NK60Z STP10NK60ZFP STW10NK60Z

* TAB VDSS 600 V 600 V 600 V 600 V 600 V RDS(on) max ID Pw TAB 3 12 1 2 3 < 0.75 Ω 10 A 115 W < 0.75 Ω 10 A 115 W < 0.75 Ω 10 A 115 W < 0.75 Ω 10 A 35 W < 0.75 Ω 10 A 156 W TAB I2PAK 3 1 2 TO-220FP TO-22

P10NK60Z General Description

These devices are N-channel Zener-protected Power MOSFET developed using STMicroelectronics' SuperMESH™ technology, achieved through optimization of ST's wellestablished strip-based PowerMESH™ layout. In addition to a significant reduction in onresistance, this device is designed to ensure a high le.

P10NK60Z Datasheet (665.34 KB)

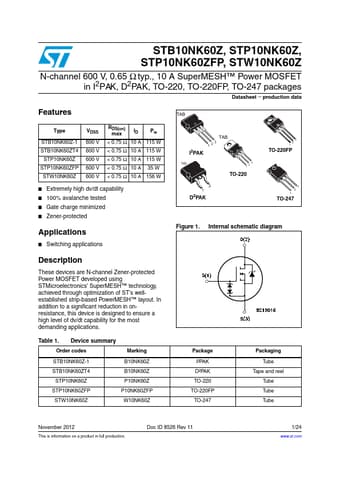

P10NK60Z Datasheet Preview — Preview of P10NK60Z PDF

Datasheet Details

Part number:

P10NK60Z

Manufacturer:

STMicroelectronics ↗

File Size:

665.34 KB

Description:

N-channel power mosfet.
STB10NK60Z, STP10NK60Z, STP10NK60ZFP, STW10NK60Z N-channel 600 V, 0.65 Ω typ., 10 A SuperMESH™ Power MOSFET in I2PAK, D2PAK, TO-220, TO-220FP, TO-247 .
