P10NK70Z - N-Channel MOSFET

P10NK70Z Description

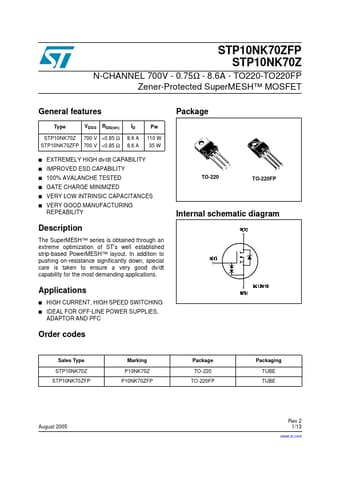

STP10NK70Z STP10NK70ZFP N-CHANNEL 700V - 0.75Ω - 8.6A TO-220/TO-220FP Zener-Protected SuperMESH™Power MOSFET TYPE STP10NK70Z STP10NK70ZFP s s s s s s .
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout.

P10NK70Z Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

P10NK70Z Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. INTERNAL SCHEMATIC DIAGRAM APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s IDEAL FOR OFF-LINE POWER SUPPLIES, ADAPTORS AND PFC s ORDERING INFORMATION SALES TYPE STP10NK70Z STP10NK70ZFP MARKI
