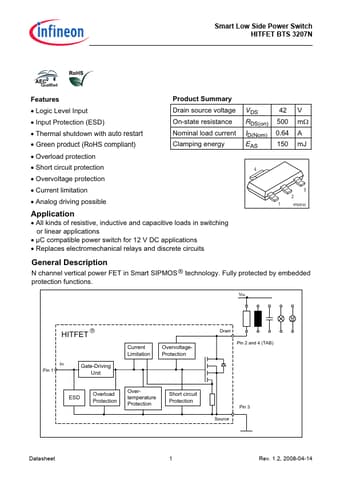

BTS3207N Datasheet, Switch, Infineon Technologies

BTS3207N Features

• Switch Product Summary
• Logic Level Input Drain source voltage
• Input Protection (ESD)
• Thermal shutdown with auto restart
• Green product (RoHS complian

PDF File Details

Part number:

BTS3207N

Manufacturer:

Infineon ↗ Technologies

File Size:

223.85kb

Download:

📄 Datasheet

Description:

Smart low side power switch. N channel vertical power FET in Smart SIPMOSÒ technology. Fully protected by embedded protection functions. Vbb HITFET â In Pin 1

BTS3207N Application

• Applications
• µC compatible power switch for 12 V DC applications
• Replaces electromechanical relays and discrete circuits VDS RD
