IPA80R1K0CE MOSFET

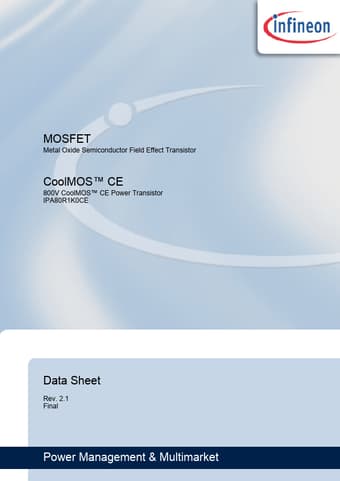

📥 Download Datasheet Datasheet Preview Page 1

Description

MOSFET Metal Oxide Semiconductor Field Effect Transistor CoolMOS™ CE 800V CoolMOS™ CE Power Transistor IPA80R1K0CE Data Sheet Rev.2.1 Final Power Man.
CoolMOS™ CE is a revolutionary technology for high voltage power MOSFETs.

📥 Download Datasheet

Preview of IPA80R1K0CE PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* High voltage technology
* Extreme dv/dt rated
* High peak current capability
* Low gate charge
* Low effective capacitances
* Pb-free plating, RoHS Compliant, Halogen free mold compound

Applications

* Applications LED Lighting for retrofit applications in QR Flyback topology Please note: For MOSFET paralleling the use of ferrite beads on the gate or separate totem poles is generally recommended. TO-220 FP Drain Pin 2, Tab Gate Pin 1 Source Pin 3 Table 1 Key Performance Parameters Parame
