IPA029N06N Datasheet - Infineon

IPA029N06N, MOSFET

MOSFET Metal Oxide Semiconductor Field Effect Transistor OptiMOSTM OptiMOSTM Power-Transistor, 60 V IPA029N06N Data Sheet Rev.2.2 Final Power Managem.
Features. Optimized for high performance SMPS, e. 100% avalanche tested. Superior thermal resistance.

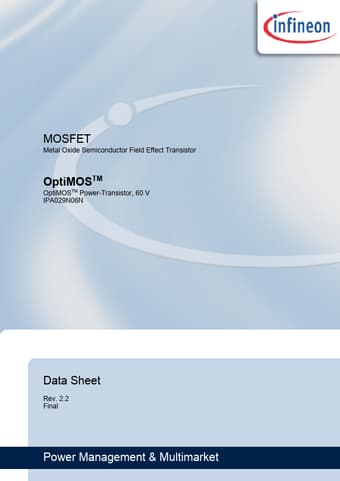

datasheet Preview Page 1 from Datasheet4u.com

IPA029N06N-Infineon.pdf

IPA029N06N Datasheet Preview — Preview of IPA029N06N PDF

Datasheet Details

Part number:

IPA029N06N

Manufacturer:

Infineon ↗

File Size:

1.74 MB

Description:

MOSFET

Features

* Optimized for high performance SMPS, e. g. sync. rec.
* 100% avalanche tested
* Superior thermal resistance
* N-channel

Applications

* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max 2.9 mΩ ID 84 A QOSS 65 nC QG(0V. .10V) 56 nC OptiMOSTM Power-Transistor, 60 V IPA029N06N TO-220-FP Gate
