IPB80N04S2-04

Power-Transistor

IPB80N04S2-04 Features

* N-channel - Enhancement mode

* Automotive AEC Q101 qualified

* MSL1 up to 260°C peak reflow

* 175°C operating temperature

* Green package (lead free)

* Ultra low Rds(on)

* 100% Avalanche tested PG-TO263-3-2 Product Summary V DS R DS(on),max

IPB80N04S2-04 General Description

and charts stated herein. Information For further information on technology, delivery terms and conditions and prices, please contact your nearest Infineon Technologies Office (www.infineon.com) Warnings Due to technical requirements, components may contain dangerous substances. For information o.

IPB80N04S2-04 Datasheet (195.63 KB)

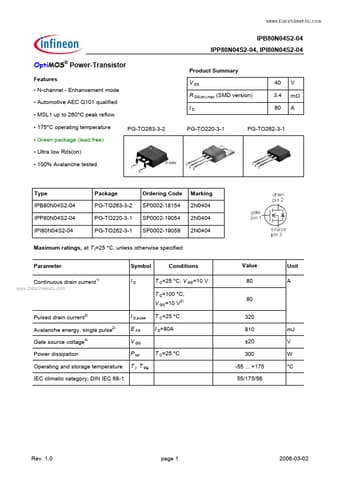

Preview of IPB80N04S2-04 PDF

Datasheet Details

Part number:

IPB80N04S2-04

Manufacturer:

Infineon ↗ Technologies

File Size:

195.63 KB

Description:

Power-transistor.
