IPI100N04S4-H2 - OptiMOS-T2 Power-Transistor

Infineon Technologies

📥 Download Datasheet

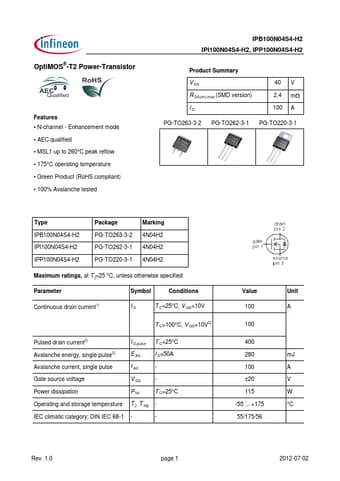

IPI100N04S4-H2 Datasheet Preview — Preview of IPI100N04S4-H2 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IPI100N04S4-H2
Manufacturer: Infineon ↗ Technologies
File Size: 129.17 KB
Datasheet: IPI100N04S4-H2_InfineonTechnologies.pdf
Description: OptiMOS-T2 Power-Transistor

IPI100N04S4-H2 Product details

Features

N-channel - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPB100N04S4-H2 IPI100N04S4-H2, IPP100N04S4-H2 Product Summary V DS R DS(on),max (SMD version) ID 40 V 2.4 mW 100 A PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB100N04S4-H2 IPI100N04S4-H2 IPP100N04S4-H2 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 4N04H2 4N04H2 4N04H2.
