IPS12N03LBG, IPD-12N Datasheet - Infineon Technologies

IPS12N03LBG Power-Transistor

Type IPD12N03LB G IPU12N03LB G IPS12N03LB G IPF12N03LB G OptiMOS®2 Power-Transistor Package Marking Qualified according to JEDEC1) for target applications N-channel, logic level Excellent gate charge x R DS(on) product (FOM) www.DataSheet4U.com Product Summary V DS R DS(on),max ID 30 11.6 30 V mΩ A Superior thermal resistance 175 °C operating temperature Pb-free lead plating; RoHS compliant Type IPD12N03LB G IPS12N03LB G IPF12N.

IPD-12N-03LBG.pdf

This datasheet PDF includes multiple part numbers: IPS12N03LBG, IPD-12N. Please refer to the document for exact specifications by model.

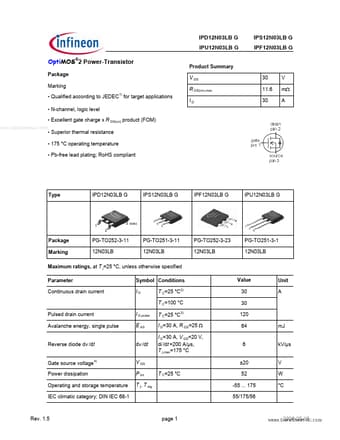

IPS12N03LBG Datasheet Preview Page 2 IPS12N03LBG Datasheet Preview Page 3

Datasheet Details

Part number:

IPS12N03LBG, IPD-12N

Manufacturer:

Infineon ↗ Technologies

File Size:

455.90 KB

Description:

Power-transistor.

Note:

This datasheet PDF includes multiple part numbers: IPS12N03LBG, IPD-12N.
Please refer to the document for exact specifications by model.
