SGB02N60 Datasheet - Infineon Technologies

SGB02N60 IGBT

www.DataSheet4U.com SGP02N60, Fast IGBT in NPT-technology 75% lower Eoff compared to previous generation combined with low conduction losses Short circuit withstand time 10 µs Designed for: - Motor controls - Inverter NPT-Technology for 600V applications offers: - very tight parameter distribution - high ruggedness, temperature stable behaviour - parallel switching capability SGB02N60 SGD02N60 C G E P-TO-252-3-1 (D-PAK) (TO-252AA) P-TO-220.

SGB02N60_InfineonTechnologies.pdf

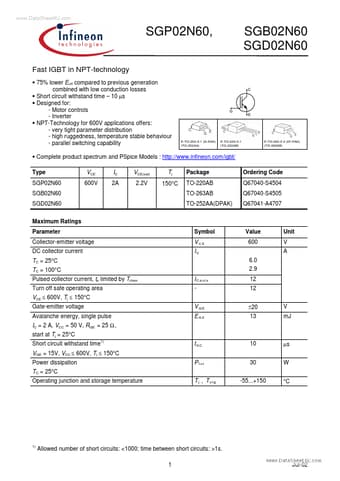

Preview of SGB02N60 PDF
SGB02N60 Datasheet Preview Page 2 SGB02N60 Datasheet Preview Page 3

Datasheet Details

Part number:

SGB02N60

Manufacturer:

Infineon ↗ Technologies

File Size:

426.63 KB

Description:

Igbt.
