SGB06N60 Datasheet - Infineon Technologies

SGB06N60 IGBT

www.DataSheet4U.com SGP06N60, SGD06N60, Fast IGBT in NPT-technology 75% lower Eoff compared to previous generation combined with low conduction losses Short circuit withstand time 10 µs Designed for: - Motor controls - Inverter NPT-Technology for 600V applications offers: - very tight parameter distribution - high ruggedness, temperature stable behaviour - parallel switching capability SGB06N60 SGU06N60 C G E P-TO-251-3-1 (I-PAK) (TO-251AA).

SGB06N60 Datasheet (428.64 KB)

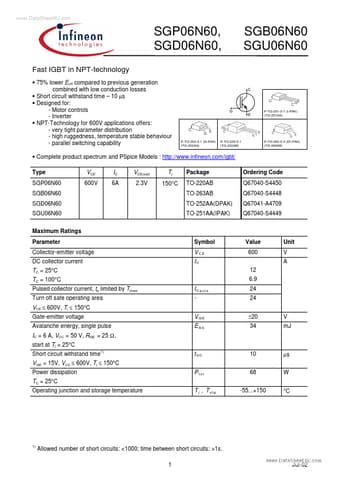

Preview of SGB06N60 PDF

Datasheet Details

Part number:

SGB06N60

Manufacturer:

Infineon ↗ Technologies

File Size:

428.64 KB

Description:

Igbt.
