1ED3431MC12M Datasheet - Infineon

1ED3431MC12M Single-channel 5.7kV (rms) isolated gate driver

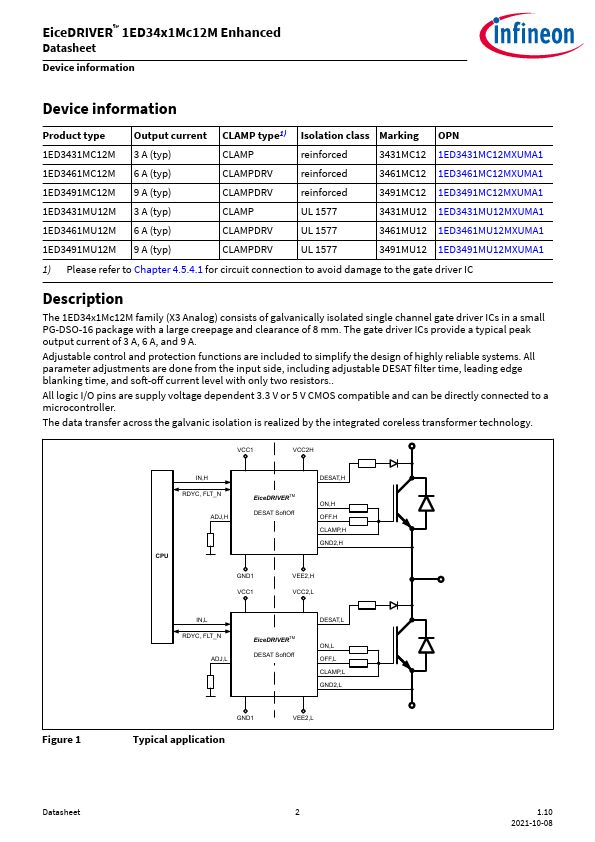

The 1ED34x1Mc12M family (X3 Analog) consists of galvanically isolated single channel gate driver ICs in a small PG-DSO-16 package with a large creepage and clearance of 8 mm. The gate driver ICs provide a typical peak output current of 3 A, 6 A, and 9 A. Adjustable control and protection functions a.

1ED3431MC12M Features

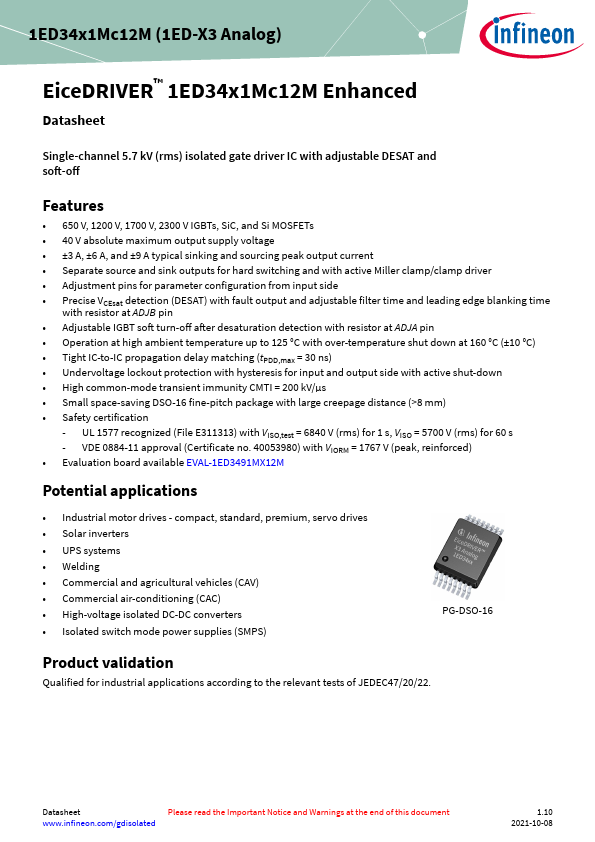

* 650 V, 1200 V, 1700 V, 2300 V IGBTs, SiC, and Si MOSFETs

* 40 V absolute maximum output supply voltage

* ±3 A, ±6 A, and ±9 A typical sinking and sourcing peak output current

* Separate source and sink outputs for hard switching and with active Miller clamp/clamp dr

1ED3431MC12M-Infineon.pdf

Preview of 1ED3431MC12M PDF
1ED3431MC12M Datasheet Preview Page 2 1ED3431MC12M Datasheet Preview Page 3

Datasheet Details

Part number:

1ED3431MC12M

Manufacturer:

Infineon ↗

File Size:

777.61 KB

Description:

Single-channel 5.7kv (rms) isolated gate driver.
