1ED3461MC12M, 1ED3431MC12M Single-channel 5.7kV (rms) isolated gate driver

Infineon

Description

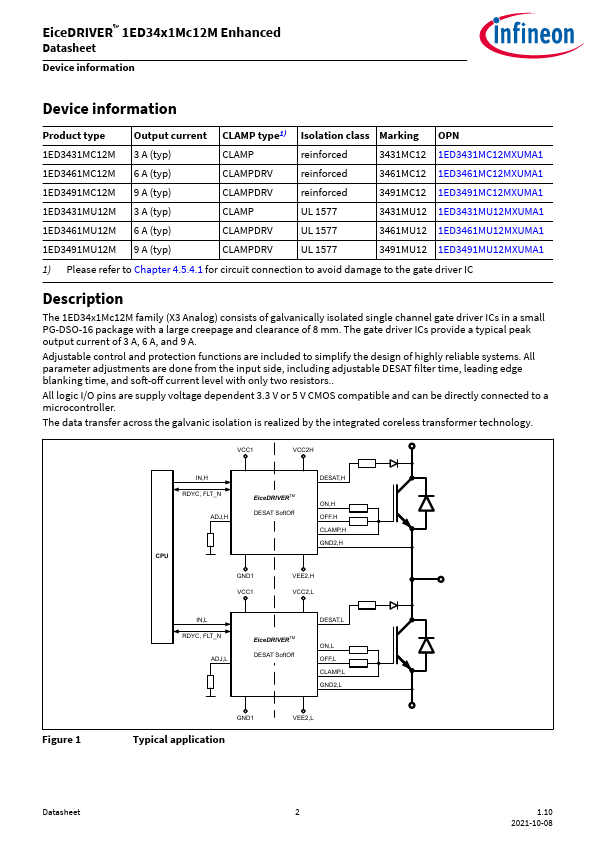

1ED34x1Mc12M (1ED-X3 Analog) EiceDRIVER™ 1ED34x1Mc12M Enhanced Datasheet Single-channel 5.7 kV (rms) isolated gate driver IC with adjustable DESAT a.
The 1ED34x1Mc12M family (X3 Analog) consists of galvanically isolated single channel gate driver ICs in a small PG-DSO-16 package with a large creepag.

📥 Download Datasheet

1ED3461MC12M Datasheet Preview — This datasheet PDF includes multiple part numbers: 1ED3461MC12M, 1ED3431MC12M. Please refer to the document for exact specifications by model.

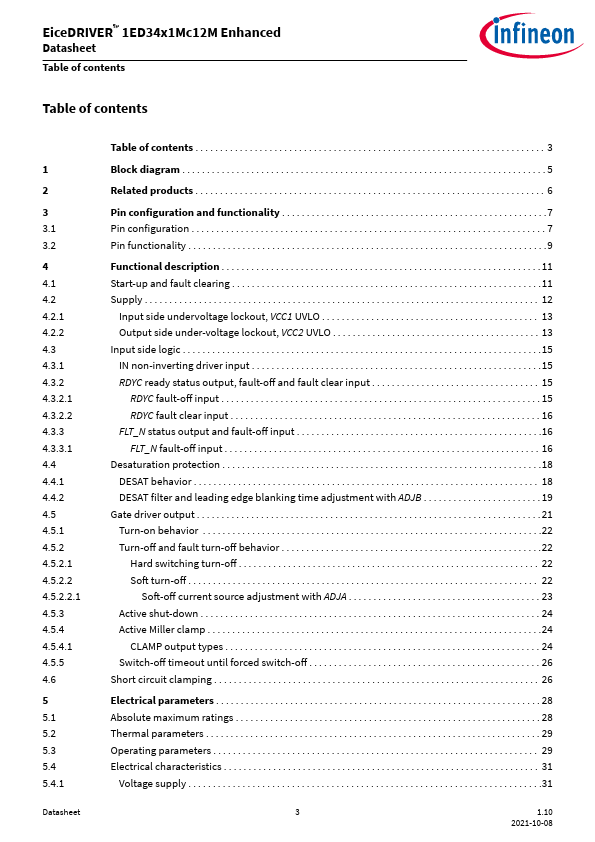

Datasheet Specifications

Part number: 1ED3461MC12M, 1ED3431MC12M
Manufacturer: Infineon ↗
File Size: 777.61 KB
Datasheet: 1ED3431MC12M-Infineon.pdf
Description: Single-channel 5.7kV (rms) isolated gate driver
Note: This datasheet PDF includes multiple part numbers: 1ED3461MC12M, 1ED3431MC12M.
Please refer to the document for exact specifications by model.

Features

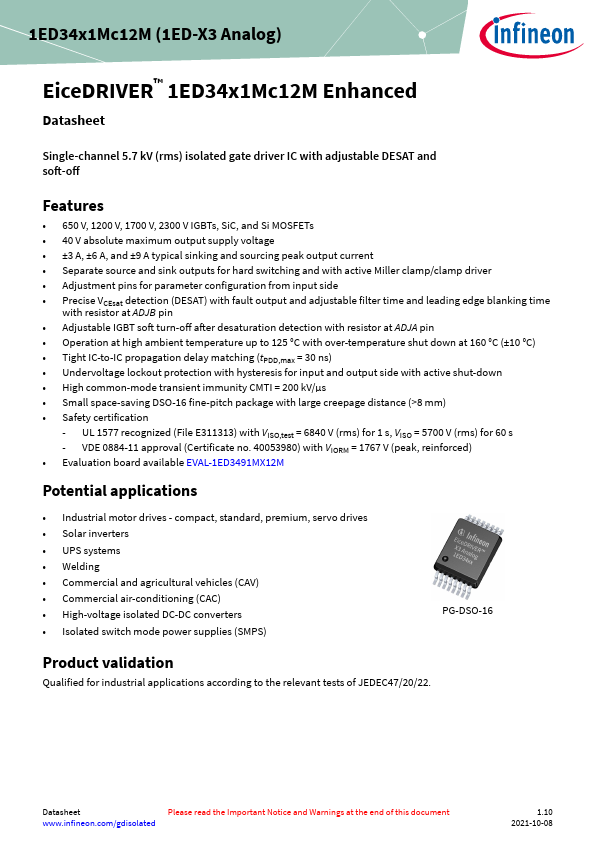

* 650 V, 1200 V, 1700 V, 2300 V IGBTs, SiC, and Si MOSFETs
* 40 V absolute maximum output supply voltage
* ±3 A, ±6 A, and ±9 A typical sinking and sourcing peak output current
* Separate source and sink outputs for hard switching and with active Miller clamp/clamp dr

Applications

* Industrial motor drives - compact, standard, premium, servo drives
* Solar inverters
* UPS systems
* Welding
* Commercial and agricultural vehicles (CAV)
* Commercial air-conditioning (CAC)
* High-voltage isolated DC-DC converters
