1EDI3051AS - Single channel isolated IGBT/SiC-MOSFET driver

Infineon

Datasheet Details

Part number	1EDI3051AS
Manufacturer	Infineon
File Size	1.69 MB
Description	Single channel isolated IGBT/SiC-MOSFET driver
Datasheet	1EDI3051AS-Infineon.pdf

. . .8 Pin definitions and functions

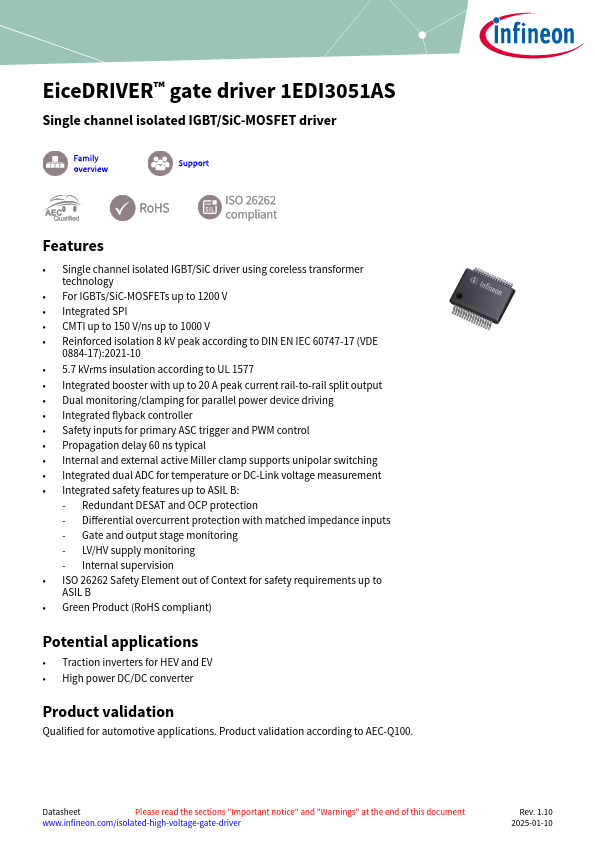

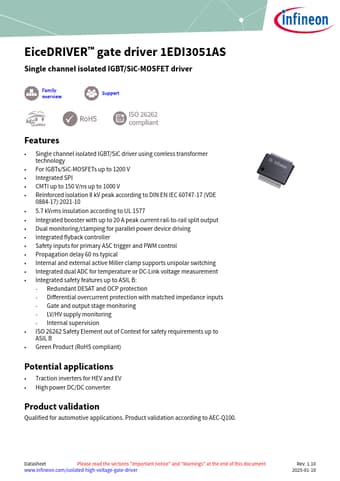

Single channel isolated IGBT/SiC driver using coreless transformer technology.
For IGBTs/SiC-MOSFETs up to 1200 V.
Integrated SPI.
CMTI up to 150 V/ns up to 1000 V.
Reinforced isolation 8 kV peak according to DIN EN IEC 60747-17 (VDE 0884-17):2021-10.
5.7 kVrms insulation according to UL 1577.
Integrated booster with up to 20 A peak current rail-to-rail split output.
Dual monitoring/clamping for parallel power device drivin.
