1EDI3031AS, Single channel isolated SiC-MOSFET driver

EiceDRIVER™ gate driver 1EDI3031AS Single channel isolated SiC-MOSFET driver .
The EiceDRIVER™ gate driver 1EDI3031AS is a high-voltage SiC-MOSFET driver designed for automotive motor drives above 5 kW.

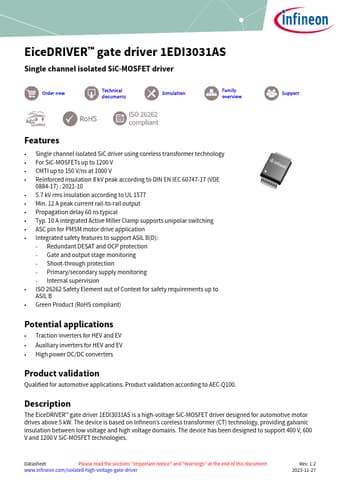

datasheet Preview Page 1 from Datasheet4u.com

1EDI3031AS-Infineon.pdf

1EDI3031AS Datasheet Preview — Preview of 1EDI3031AS PDF

Datasheet Details

Part number:

1EDI3031AS

Manufacturer:

Infineon ↗

File Size:

912.86 KB

Description:

Single channel isolated SiC-MOSFET driver

Features

* Single channel isolated SiC driver using coreless transformer technology
* For SiC-MOSFETs up to 1200 V
* CMTI up to 150 V/ns at 1000 V
* Reinforced insulation 8 kV peak according to DIN EN IEC 60747-17 (VDE 0884-17) : 2021-10
* 5.7 kV rms insulation accordi

Applications

* Traction inverters for HEV and EV
* Auxiliary inverters for HEV and EV
