2EDF7275K, 2EDF7275F - MOSFET gate-driver

Infineon

2EDF7275K Datasheet Preview — This datasheet PDF includes multiple part numbers: 2EDF7275K, 2EDF7275F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	2EDF7275K, 2EDF7275F
Manufacturer	Infineon ↗
File Size	726.18 KB
Description	MOSFET gate-driver
Datasheet	2EDF7275F-Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: 2EDF7275K, 2EDF7275F. Please refer to the document for exact specifications by model.

2EDF7275K Product details

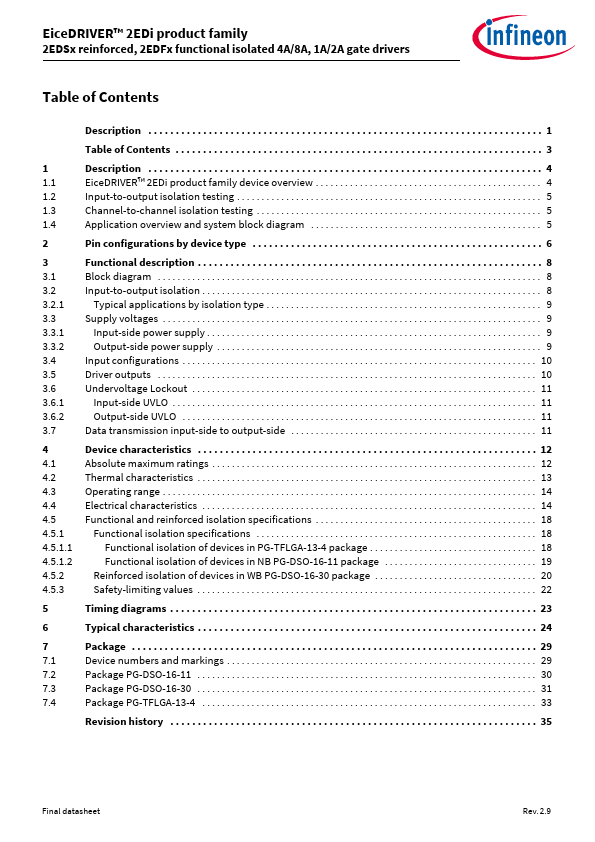

Description

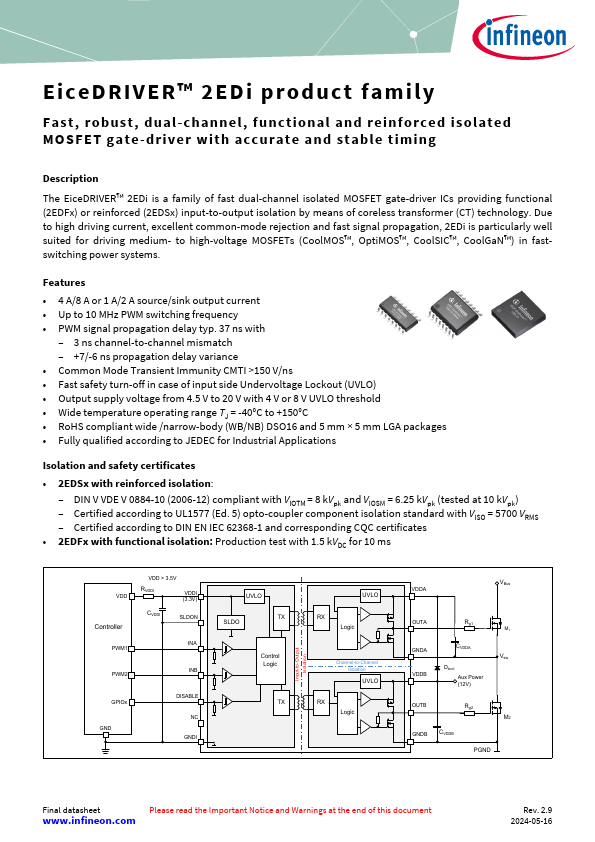

The EiceDRIVER™ 2EDi is a family of fast dual-channel isolated MOSFET gate-driver ICs providing functional (2EDFx) or reinforced (2EDSx) input-to-output isolation by means of coreless transformer (CT) technology.

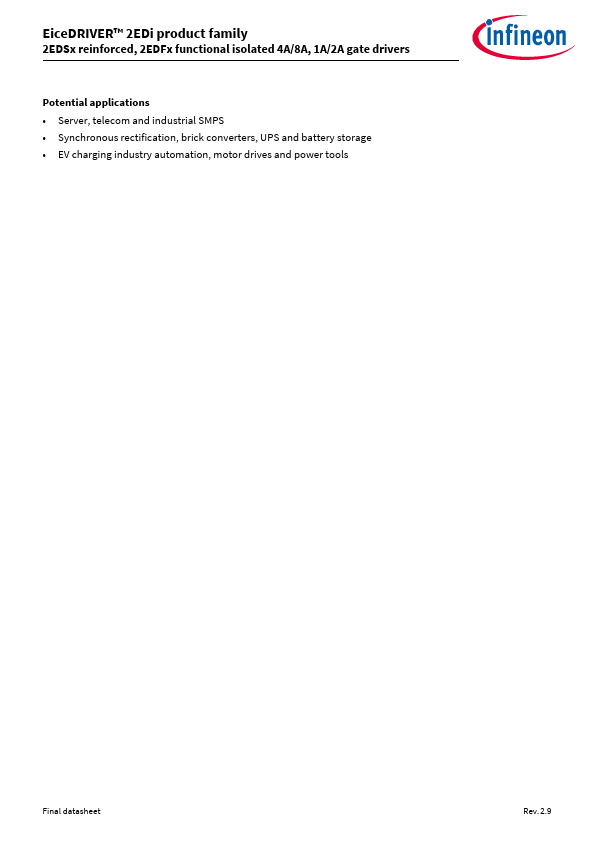

Features

4 A/8 A or 1 A/2 A source/sink output current.
Up to 10 MHz PWM switching frequency.
PWM signal propagation delay typ. 37 ns with.
3 ns channel-to-channel mismatch.
+7/-6 ns propagation delay variance.
Common Mode Transient Immunity CMTI >150 V/ns.
Fast safety turn-off in case of input side Undervoltage Lockout (UVLO).
Output supply voltage from 4.5 V to 20 V with 4 V or 8 V UVLO threshold.
Wide temperature operati.
