2EDF8275F Datasheet, Gate-driver, Infineon

2EDF8275F Features

• Gate-driver
• 4 A / 8 A or 1 A / 2 A source / sink output current
• Up to 10 MHz PWM switching frequency
• PWM signal propagation delay typ. 37 ns with
    – 3 n

PDF File Details

Part number:

2EDF8275F

Manufacturer:

Infineon ↗

File Size:

1.41MB

Download:

📄 Datasheet

Description:

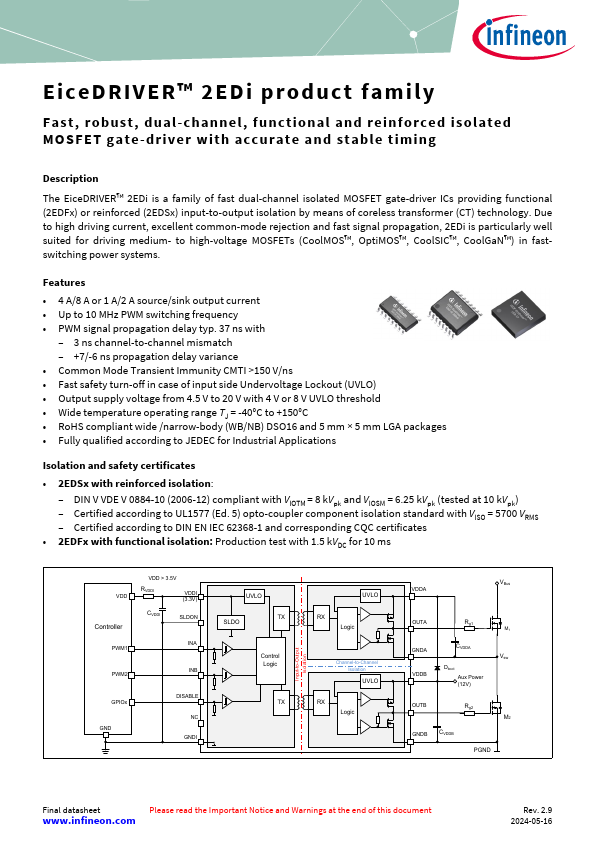

Mosfet gate-driver. The EiceDRIVER™ 2EDi is a family of fast dual-channel isolated MOSFET gate-driver ICs providing functional (2EDFx) or reinforced (2ED

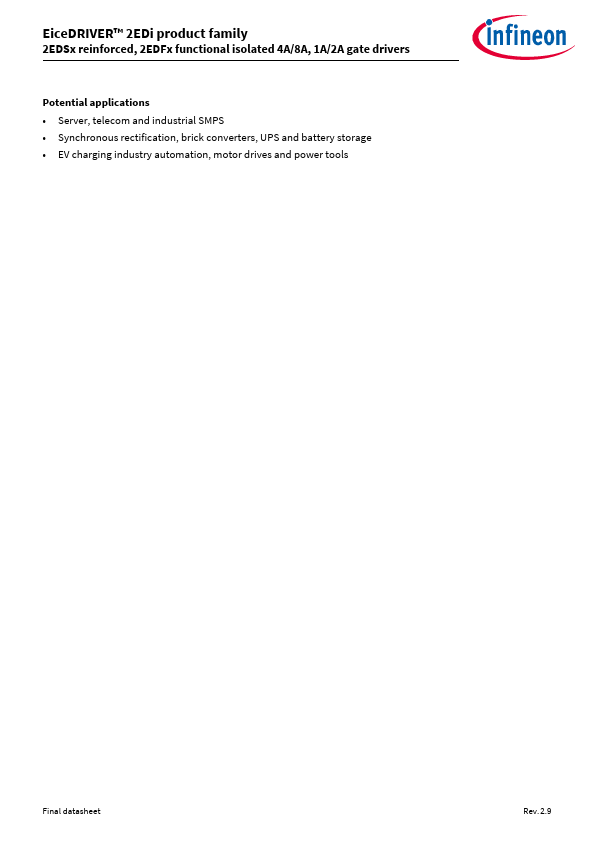

2EDF8275F Application

• Applications Isolation and safety certificates
• 2EDSx with reinforced isolation:
    – DIN V VDE V 0884-10 (2006-12) compliant
